Smart Parking Control System(KAS-ALP-MTB100)
  • KAS-ALP-MTB100
  • Drawing

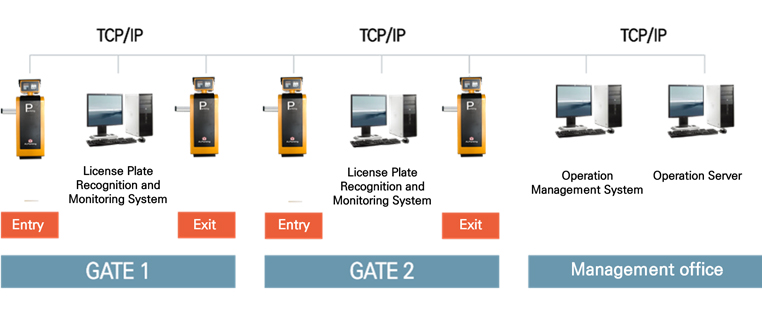

System Configuration

System specifications
System specifications
CommunicationPort RS-232/422/485 TCP/IP
Operating Temp -20℃ ~ +80℃
Humidity 10% ~ 90%
Camera Resolution 3.2 Megapixel
Protocols Support TCP/IP, GIGA byte
Illumination Infrared light LED Strobe
Focal Distance More than 9~50mm
Recognition Rate 100%
Control Function Brightness, Sharpness, Gamma, Auto-Exposure, Auto Shutter, Auto Gain
Recognition Object Normal vehicle number plate car and truck
Recognition Content Letters and numbers on the license plate(except for special vehicles)
IR 15M-Simple
LED Display P3 2Lines
Filming Method Trigger / Video
Operating system More than Windows 10 64bit
CPU More than i7-10700(2.9GHz)
RAM More than DDR4 DIMM 16GB
Storage SSD 250GB, HDD 2TB
Resolution More than 1920*1080
Network Gigabit Ethernet
System functions
System functions
Method of Recognition Progressive Scan
Image Matching Apply image feature matching algorithm, Ensure maximum recognition rate
Decomposition Image Decomposition/recognition of images sent by the number recognition camera
Vehicle Recognition (object recognition method) When the vehicle enters the camera field of view, the front of the vehicle is photographed to recognize the license plate
Transmission The recognized vehicle number and photo are transferred to the parking control computer
