Keeping up with new changes of up-to-the-minute IT Information Age, Korea Alpha System

Smart Parking Control System(KAS-ALP-MB100)
  • KAS-ALP-MB100
  • Drawing

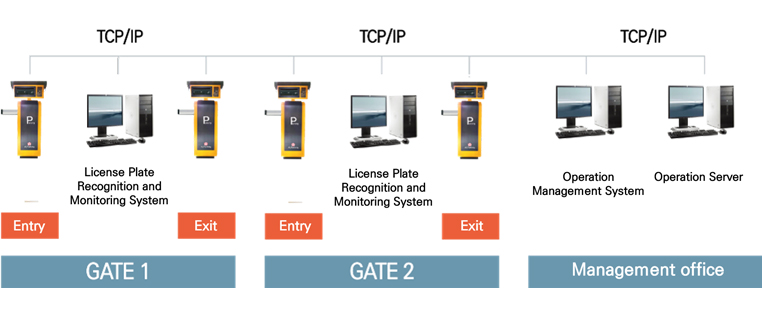

System Configuration

System specifications
System specifications
Communication Port RS-232/422/485 TCP/IP
Operating Temp -20℃ ~ +80℃
Humidity 10% ~ 90%
Camera Resolution 3.2 Megapixel
Protocols Support TCP/IP, GIGA byte
Illumination Infrared light LED Strobe
Focal Distance More than 9~50mm
Recognition Rate 100%
Control Function Brightness, Sharpness, Gamma, Auto-Exposure, Auto Shutter, Auto Gain
Recognition Object Normal vehicle number plate car and truck
Recognition Content Letters and numbers on the license plate(except for special vehicles)
IR 15M-Simple
LED Display Trigger / Video
Filming Method More than Windows 10 64bit
Operating system More than Windows 10 64bit
CPU More than i5-10210U(1.6GHz)
RAM More than DDR4 DIMM 8GB
Storage NVME M.2 SSD 256GB
Resolution More than 1920*1080 / UHD Graphics
Network Gigabit Ethernet / 802.11ax(WiFi6)
System functions
System functions
Method of Recognition Progressive Scan
Image Matching Apply image feature matching algorithm, Ensure maximum recognition rate
Decomposition Image Decomposition/recognition of images sent by the number recognition camera
Vehicle Recognition (object recognition method) When the vehicle enters the camera field of view, the front of the vehicle is photographed to recognize the license plate
Transmission The recognized vehicle number and photo are transferred to the parking control computer
